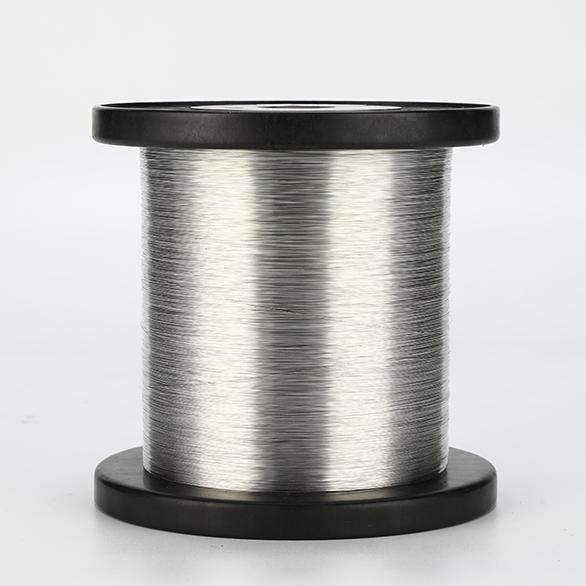

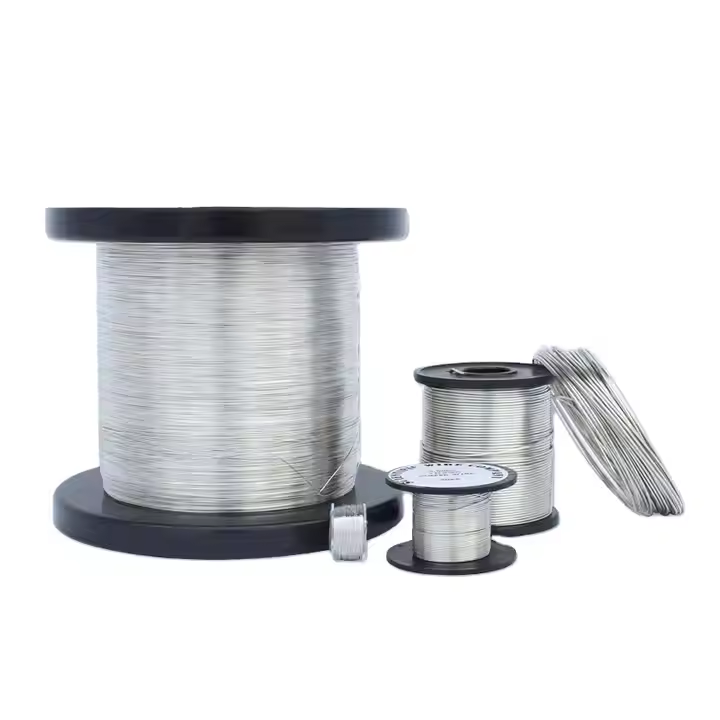

Tin Plated Copper Clad Steel Wire（T-CCS Wire）
Model: TCCS WIRE
Diameter:0.08mm~4.00mm
Capacity:300 tons/m
Tensile strength : 290 Mpa - 1500 Mpa
Electrial conductivity: 15-40% ICAS
Elongation: 1%-25%
- Overview
- Parameters
- Application
- Why Choose Us
- Packaging and Equipment
- Recommended Products
Specification: 0.08mm-1mm
T-CCS wire is what we often call "CP" wire. It is a new type of composite material with high-quality low-carbon steel as the core wire, uniformly coated with an oxygen-free copper layer by mechanical means, and then plated with a pure tin layer. Due to the high purity of materials selected for each cladding (plating) layer, the compactness between the copper cladding layer and the tin plating layer is good. It can generally be divided into two types: flexible state (A) and hard state (H).
T-CCS wire has both the high electrical conductivity and magnetic permeability of copper wire, the high strength and bendability of steel wire, the thermal conductivity and corrosion resistance of tin, and has certain oxidation resistance at high temperatures. In addition, because it has excellent strength and weldability, and is resistant to bending and strong welding points, its vibration resistance is 3-6 times that of pure copper wire, which is convenient for automatic operation.
 |
 |
 |
 |
Parameters
| Product parameters(TCCS wire) | |||||
| Diameter (mm) | Conductivity（%） | Elongation（%） | Copper content（%） | State | Packing plate |
| 0.08 | 14-40 | 8-20 | 3-35 | Soft | 100P/200P |
| 0.09 | 14-40 | 8-20 | 3-35 | Soft | 100P/200P |
| 0.1 | 14-40 | 8-20 | 3-35 | Soft | 100P/200P/185P |
| 0.12 | 14-40 | 8-20 | 3-35 | Soft | 100P/200P/185P |
| 0.15 | 14-40 | 8-20 | 3-35 | Soft | 100P/200P/185P |
| 0.2 | 14-40 | 8-20 | 3-35 | Soft | 200P/185P/250P |
| 0.25 | 14-40 | 8-20 | 3-35 | Soft | 185P/250P/350P/400P |
| 0.3 | 14-40 | 1-20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.32 | 14-40 | 1-20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.4 | 14-40 | 1-20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.5 | 14-40 | 1-20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.6 | 14-40 | 1-20 | 3-35 | Soft/Hard | 350P/400P/500P |
| 0.643 | 14-40 | 1-20 | 3-35 | Soft/Hard | 400P/500P |
| 0.813 | 14-40 | 1-20 | 3-35 | Soft/Hard | 400P/500P/630P |
| 1.024 | 14-40 | 1-20 | 3-35 | Soft/Hard | 400P/500P/630P |

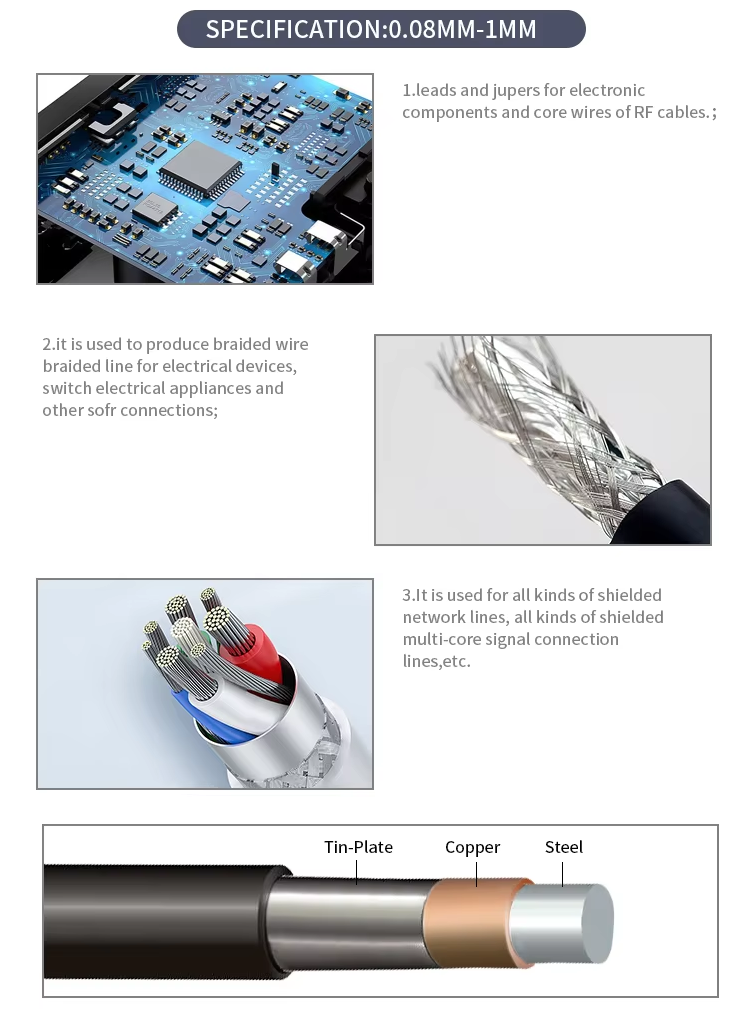

Application Fields:
1. Leads and jumpers for electronic components, core wires of radio frequency cables(RF cables);
2. Used in the production of braided wire. This type of braided wire is used for flexible-connection wires of electrical devices, switching appliances, etc.;
3. Used for various shielded network cables, various shielded multi-core signal connection cables, etc.;
Why Choose Us
Changzhou Yuzisenhan Electronics Co.,Ltd was established in 2008. We have many years of production experience. We mainly produces various specifications of CCS/TCCS, CCA/TCCA, CCAM, CCC/TCCC, stranded wire and Aluminum Foil Mylar tape etc. We are a factory with competitive prices. We have multiple certificates and product testing reports. A complete ISO9001 quality assurance system has been established to ensure that our products are strictly controlled from raw materials to finished products.
