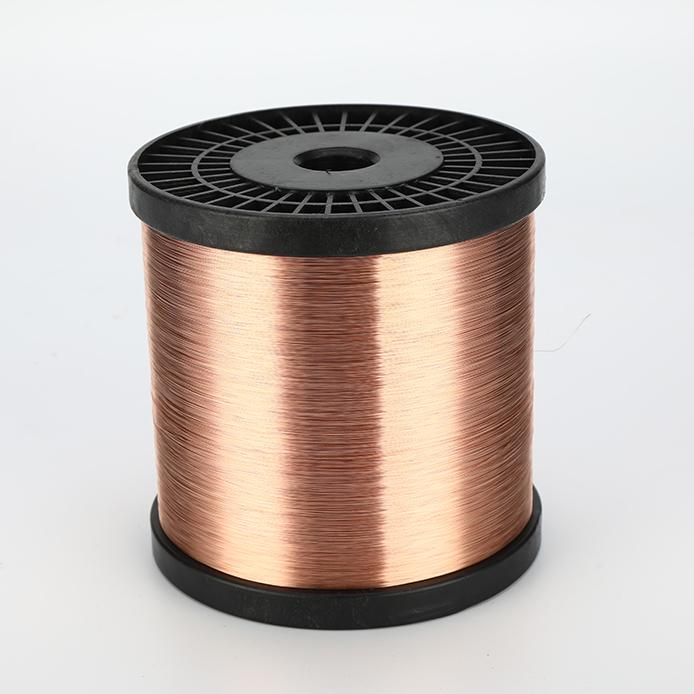

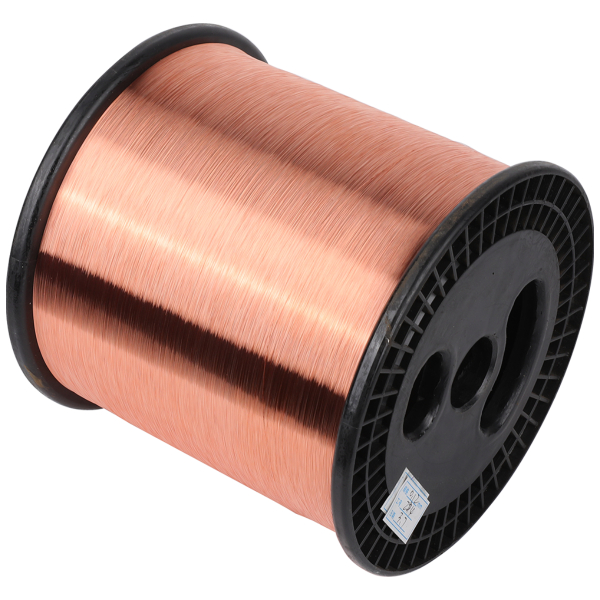

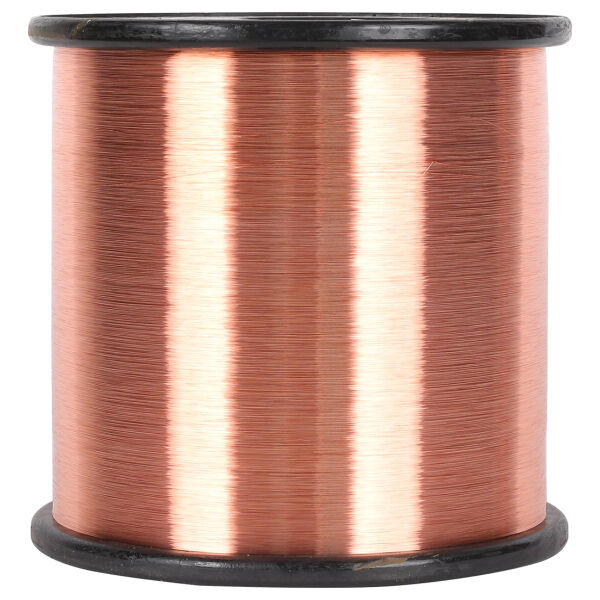

Copper Clad Aluminum Wire（CCA Wire）
Model: CCA
Cross Section Area:0.05mm-20mm
Capacity:300 tons/m
Conductivity: ≥62%
Packing Option: DIN 400 560 630 800
- Overview
- Parameters
- Application
- Why Choose Us
- Packaging and Equipment
- Recommended Products
Specification: 0.08mm-5.0mm
CCA wire is produced by the internationally advanced cladding welding process and copper plating process. The copper plating layer is made of refined copper with a purity of more than 99.9%, and the copper layer is dense and has good conductivity. Metallurgical or physical bonding between the copper layer and the aluminum core wire. The copper layer is evenly distributed along the surrounding direction and the longitudinal direction, and the concentricity is good. The technical indicators of this product conform to the American ASTM B566-93 standard. Copper-clad aluminum can be divided into two types: hard state (H) and soft state (A) according to mechanical properties. According to the process, it can be divided into two types: copper clad aluminum and copper-plated copper clad aluminum.
Executive Standards:
SJ/T11223-2000 CCA wire
ASTM B 566-93 CCA wire
 |
 |
 |
Parameters
| Application | Overhead | Conductor Material | Copper Clad Aluminum |
| Conductor Type | Solid | Insulation Material | BARE |
| Place of Origin | Jiangsu,China | Shape | ROUND |
| Diameter | 12 AWG,22 AWG,20 AWG,14 AWG,16 AWG,18 AWG | Single Wire Size |
0.8mm,2.5MM,1.5MM 0.3MM,0.5MM,0.4MM,… |
| Brand Name | YZSH | Type | Bare |
| Product name | Copper clad aluminum wire | MOQ | 500 Kg |
| Style | Customize | ||

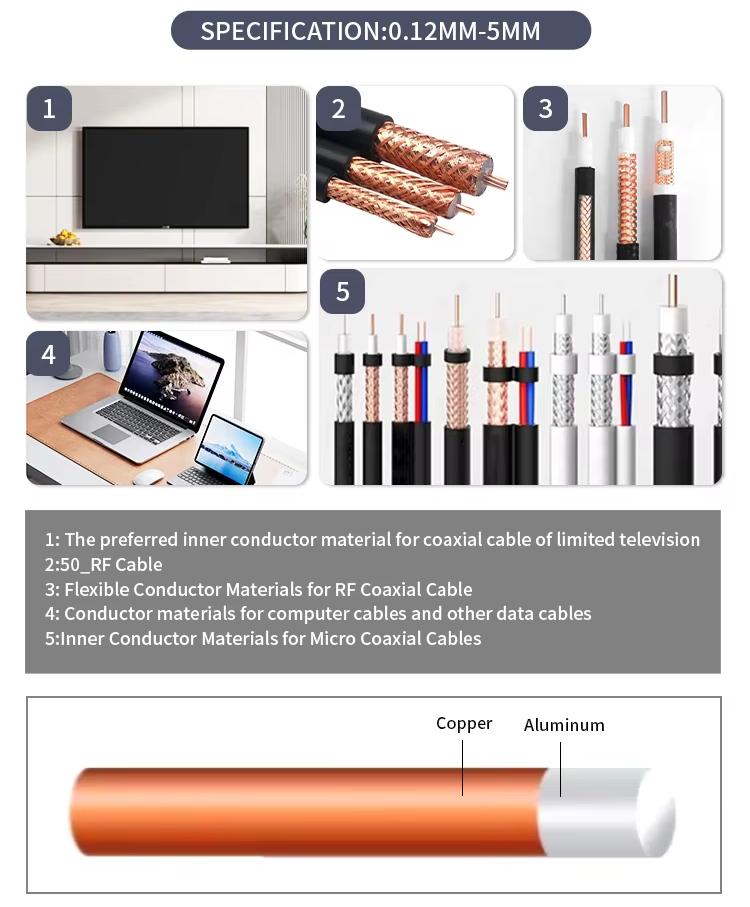

Application Fields:
1. Inner conductor and braided conductor material of cable TV coaxial cables
2. 50Ω RF cable material
3. Inner conductor material of computer cables and other data-transmission cables
4. Inner conductor material of network cables
5. Inner conductor material of power cords and low-voltage electrical appliances
Why Choose Us
Changzhou Yuzisenhan Electronics Co.,Ltd was established in 2008. We have many years of production experience. We mainly produces various specifications of CCS/TCCS, CCA/TCCA, CCAM, CCC/TCCC, stranded wire and Aluminum Foil Mylar tape etc. We are a factory with competitive prices. We have multiple certificates and product testing reports. A complete ISO9001 quality assurance system has been established to ensure that our products are strictly controlled from raw materials to finished products.
