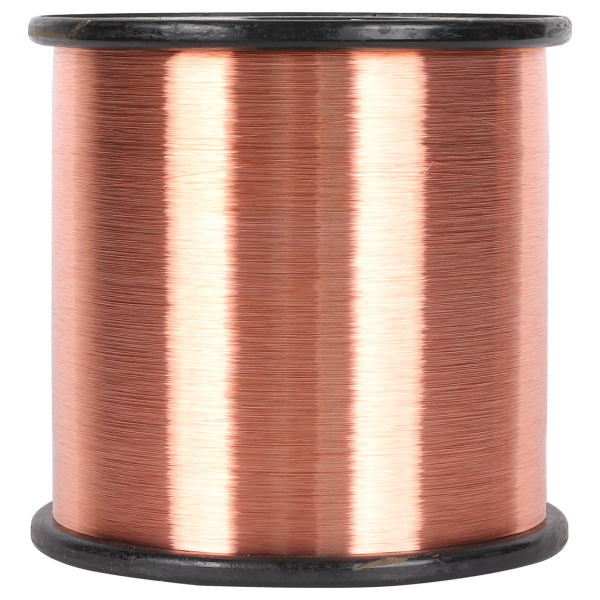

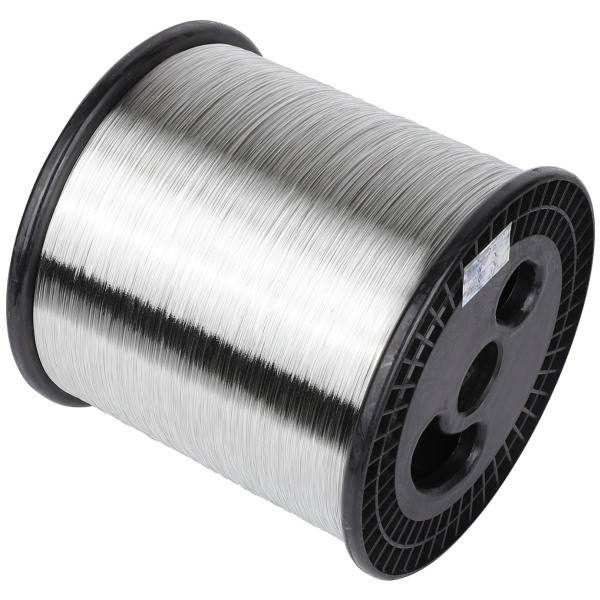

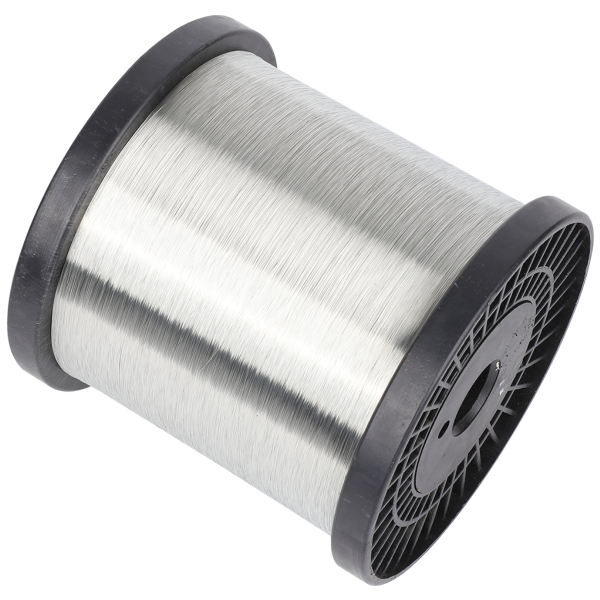

CCS Stranded Wire
Model: COPPER CLAD STEEL WIRE
Cross Section Area:0.1mm-4.0mm
Capacity:300 tons/m
Conductivity: 18%/20%/25%/30%/40%
Tensile strength:300-2800MPA

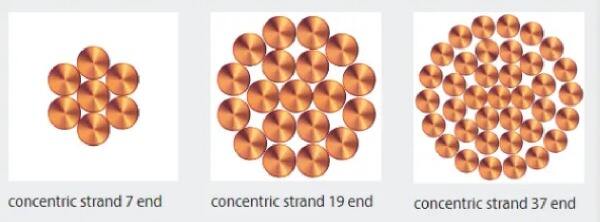

Radical number:2-3000
Packing Option: 400/500/630/787
- Overview
- Parameters
- Application
- Why Choose Us
- Packaging and Equipment
- Recommended Products

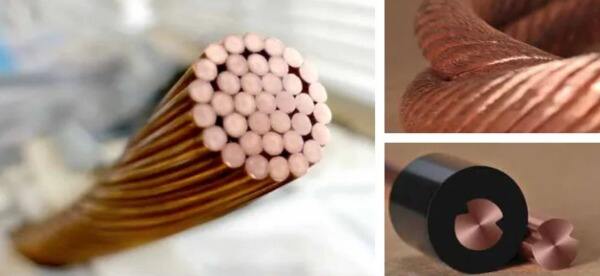

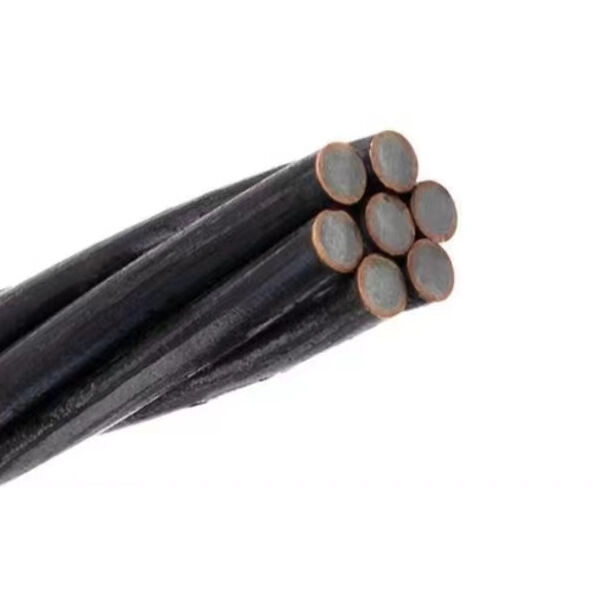

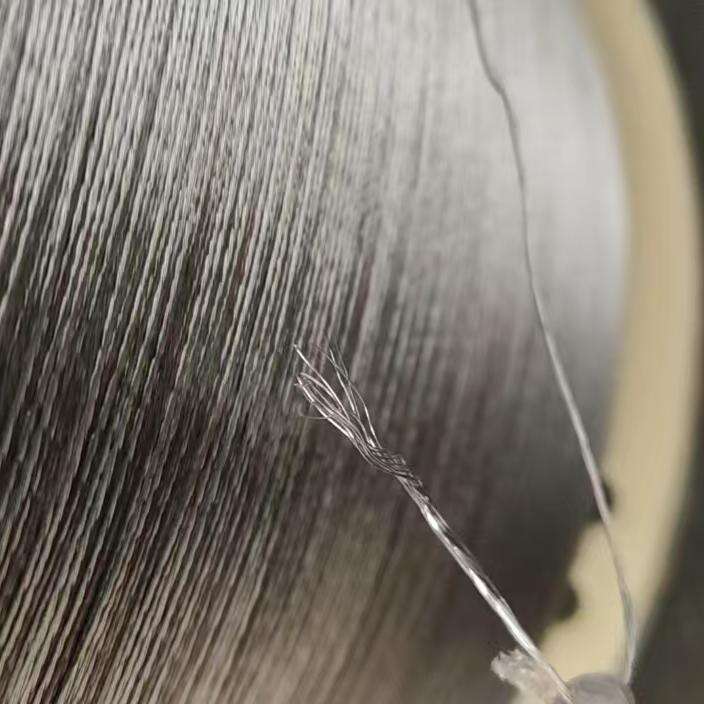

Performance characteristics of CCS stranded wire:
Copper clad steel single wire and stranded wire are new composite materials made by uniformly electroplating 99.9% electrolytic copper molecules or coating copper strips onto high-quality low-carbon steel cores through coating technology. This product has both the strength and toughness of steel, as well as the good conductivity and corrosion resistance of copper. The product is widely used in high-frequency coaxial cables, network communication, electrified railways, subway light rail, lightning protection grounding wires, etc. Compared with copper stranded wire, it has the advantages of low density, high strength, and low cost, and is an updated product of traditional pure copper stranded wire.
 |
 |
Parameters
| Product parameters(CCS wire) | |||||
| Diameter (mm) | Conductivity（%） | Elongation（%） | Copper content（%） | State | Packing plate |
| 0.08 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P |
| 0.09 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P |
| 0.1 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.12 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.15 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.2 | 14-40 | 8/20 | 3-35 | Soft | 200P/185P/250P |
| 0.25 | 14-40 | 8/20 | 3-35 | Soft | 185P/250P/350P/400P |
| 0.3 | 14-40 | 1/20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.32 | 14-40 | 1/20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.4 | 14-40 | 1/20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.5 | 14-40 | 1/20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.6 | 14-40 | 1/20 | 3-35 | Soft/Hard | 350P/400P/500P |
| 0.643 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P |
| 0.813 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P/630P |
| 1.024 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P/630P |
| 2 | 14-40 | 1/20 | 3-35 | Soft/Hard | 500P/630P |
| 4 | 14-40 | 1/20 | 3-35 | Soft/Hard | 500P/630P |
| Other More Models Can Contact Us To Customize | |||||
Application Areas:
The product is widely used in high-frequency coaxial cables, network communication, electrified railways, subway and light rail, lightning protection and grounding, etc.
Why Choose Us
Changzhou Yuzisenhan Electronics Co.,Ltd was established in 2008. We have many years of production experience. We mainly produces various specifications of CCS/TCCS, CCA/TCCA, CCAM, CCC/TCCC, stranded wire and Aluminum Foil Mylar tape etc. We are a factory with competitive prices. We have multiple certificates and product testing reports. A complete ISO9001 quality assurance system has been established to ensure that our products are strictly controlled from raw materials to finished products.

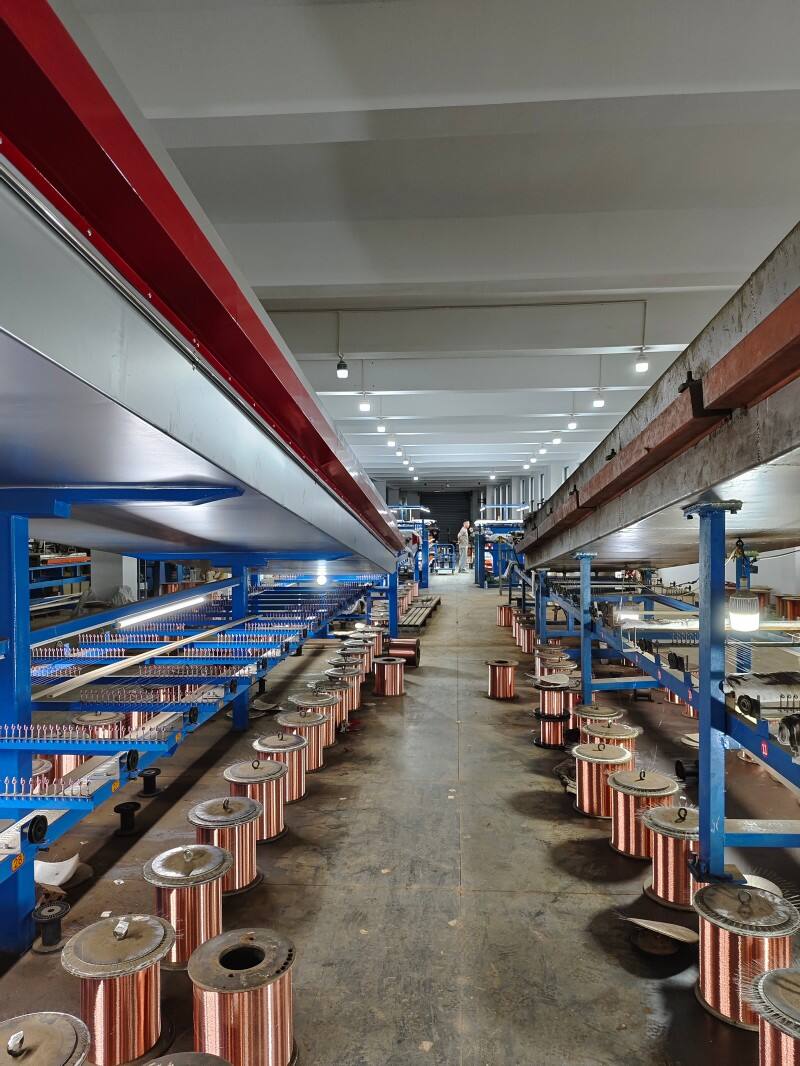

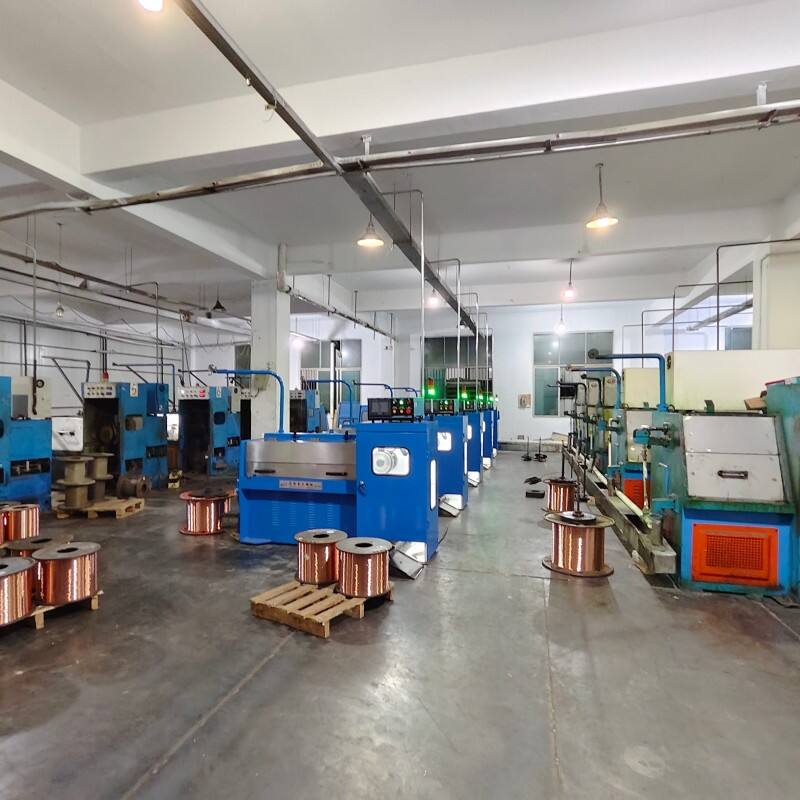

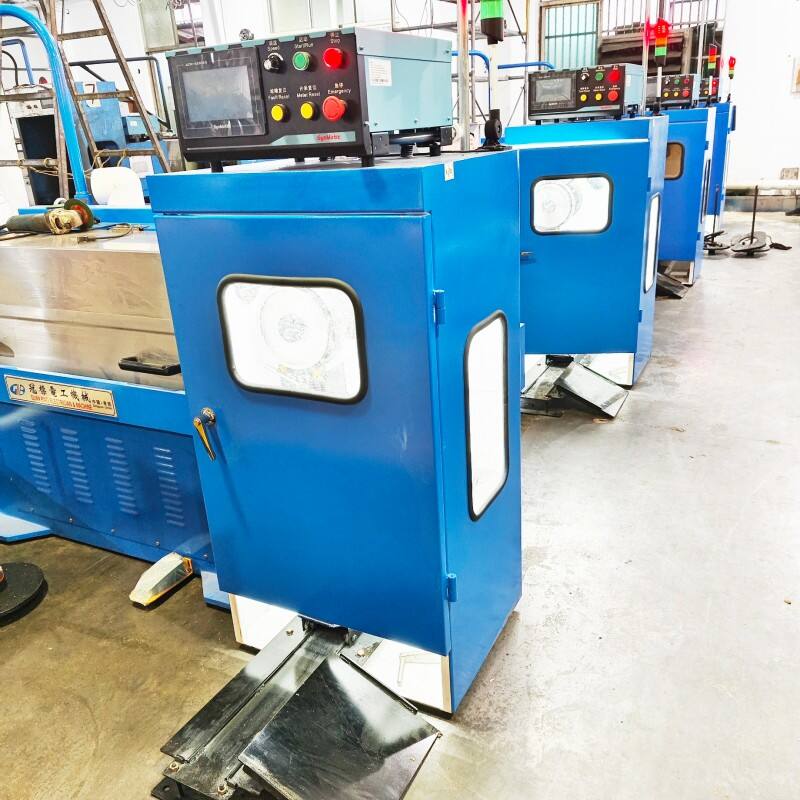

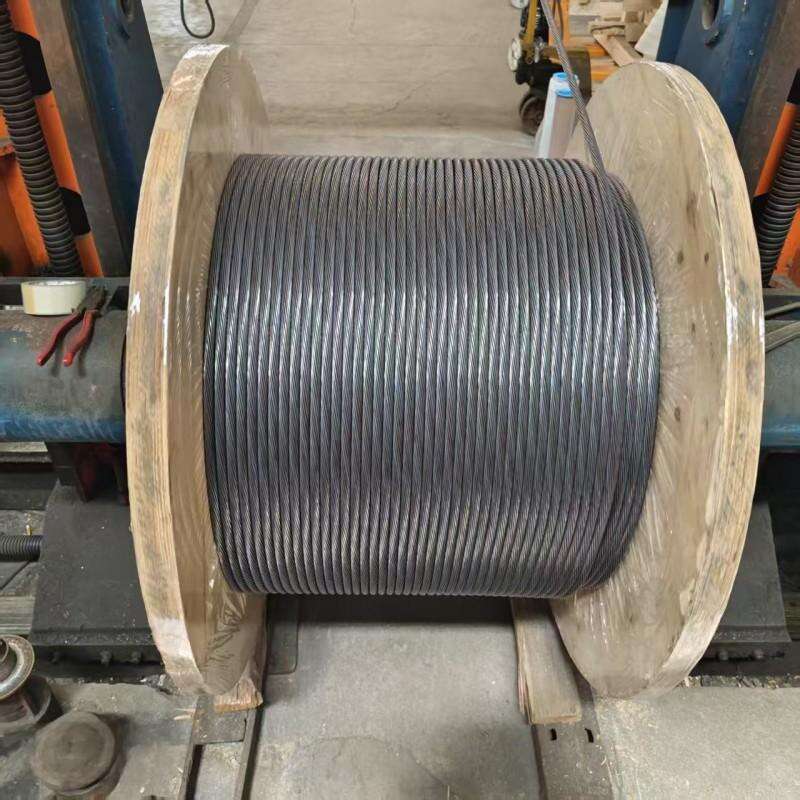

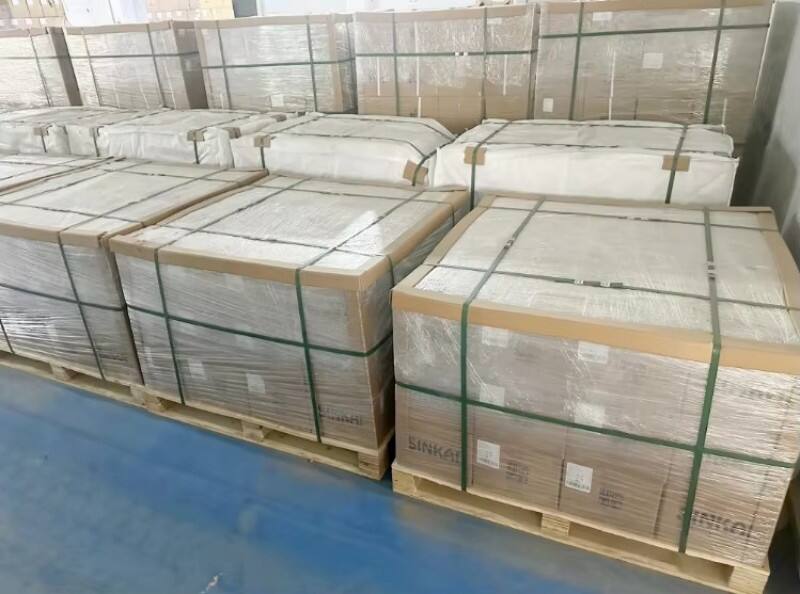

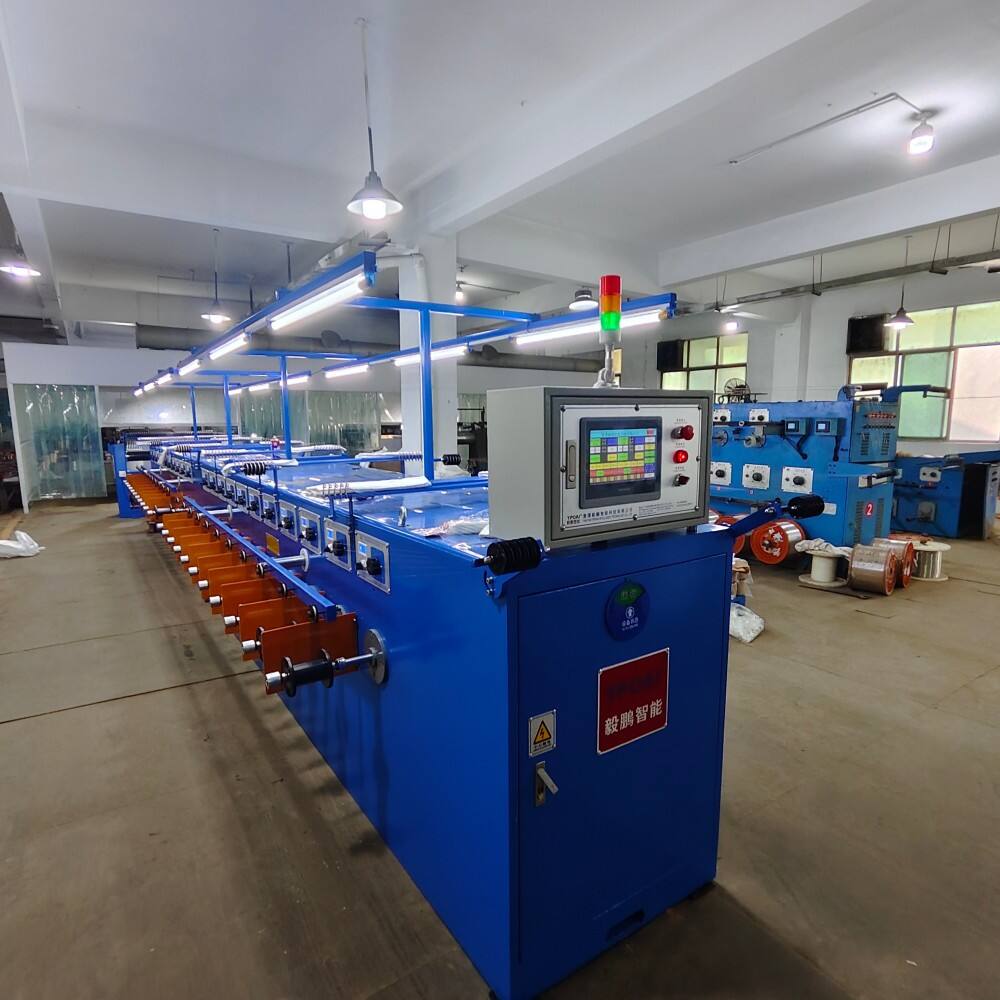

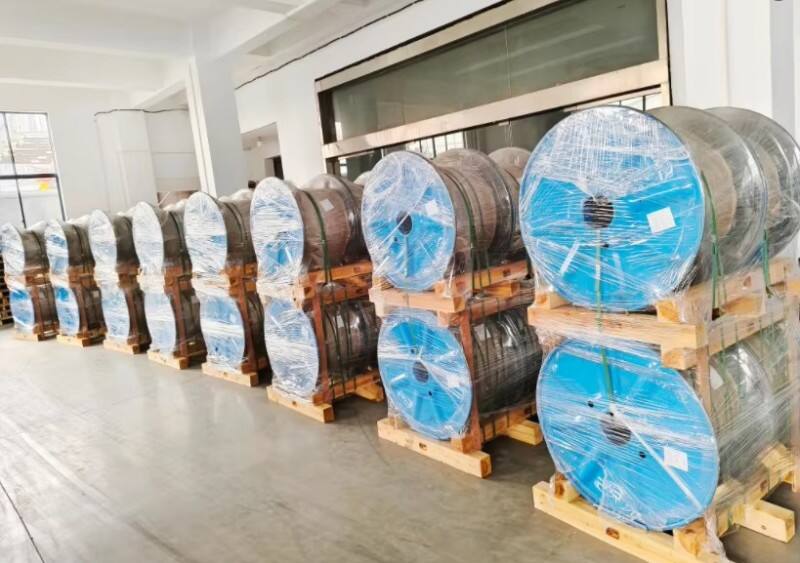

Packaging and Equipment
 |
 |
 |
 |
 |
 |
 |
 |
 |
 |
