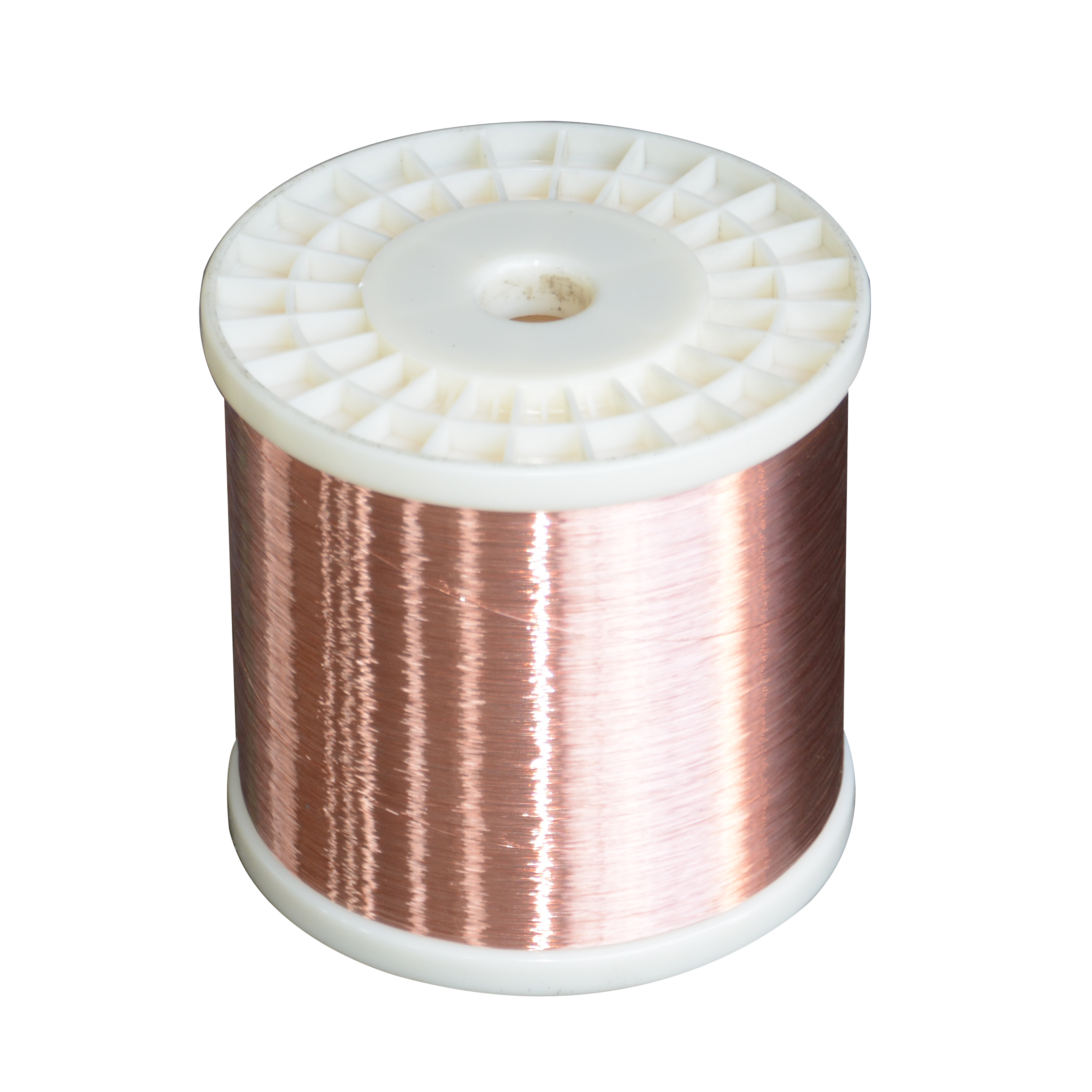

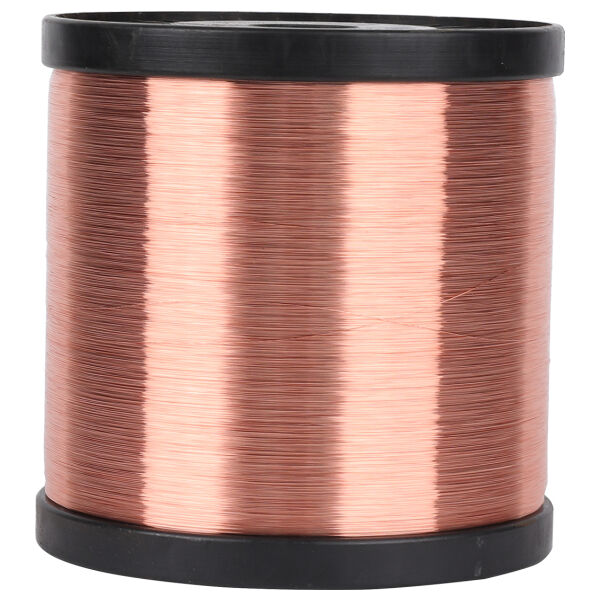

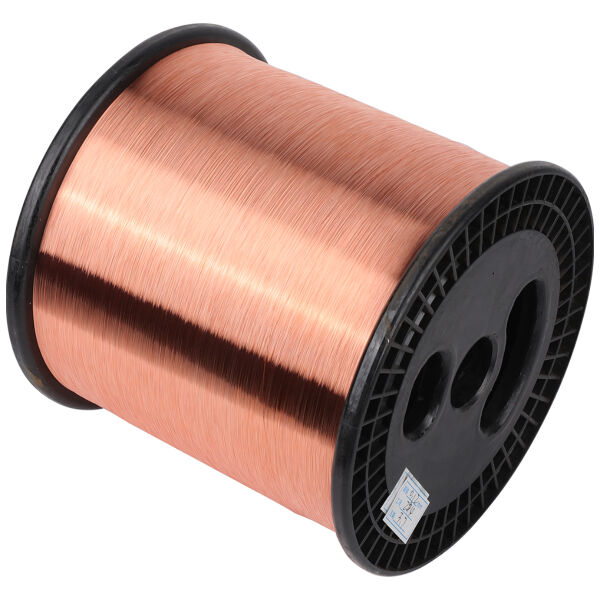

Copper Clad Steel Wire（CCS Wire）
Model: CCS
Diameter:0.10mm~4.00mm
Capacity:300 tons/m
Tensile strength : 290 Mpa - 1500 Mpa
Electrial conductivity: 15-40% ICAS
Elongation: 1%-25%
- Overview
- Parameters
- Application
- Why Choose Us
- Packaging and Equipment
- Recommended Products
Specification: 0.06mm-4.0mm
Copper-clad steel wire adopts advanced cladding welding and copper-plating manufacturing technology, and the high-quality copper strip is concentrically clad and coated on the outer surface of the core wire such as steel rod or steel wire, and form a strong bond at the atomic level between the copper layer and the core wire. This process enables two different metal materials to be combined into an inseparable whole, and can be drawn and annealed like a single metal wire. During the drawing process, the ratio of copper alloy and steel to copper changes, while the volume ratio of copper layer remains relatively constant. Due to the "skin effect" characteristic of high-frequency signals, copper-clad steel wires have the same electrical conductivity as pure copper wires when transmitting high-frequency signals (greater than 5MHz).
 |
 |
 |
 |
Parameters
| Product parameters(CCS wire) | |||||
| Diameter (mm) | Conductivity（%） | Elongation（%） | Copper content（%） | State | Packing plate |
| 0.08 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P |
| 0.09 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P |
| 0.1 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.12 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.15 | 14-40 | 8/20 | 3-35 | Soft | 100P/200P/185P |
| 0.2 | 14-40 | 8/20 | 3-35 | Soft | 200P/185P/250P |
| 0.25 | 14-40 | 8/20 | 3-35 | Soft | 185P/250P/350P/400P |
| 0.3 | 14-40 | 1/20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.32 | 14-40 | 1/20 | 3-35 | Soft/Hard | 185P/250P/350P/400P |
| 0.4 | 14-40 | 1/20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.5 | 14-40 | 1/20 | 3-35 | Soft/Hard | 250P/350P/400P |
| 0.6 | 14-40 | 1/20 | 3-35 | Soft/Hard | 350P/400P/500P |
| 0.643 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P |
| 0.813 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P/630P |
| 1.024 | 14-40 | 1/20 | 3-35 | Soft/Hard | 400P/500P/630P |
| 2 | 14-40 | 1/20 | 3-35 | Soft/Hard | 500P/630P |
| 4 | 14-40 | 1/20 | 3-35 | Soft/Hard | 500P/630P |
| Other More Models Can Contact Us To Customize | |||||
Application Fields:
1. The inner conductor of the coaxial cable of the CATV(cable television) subscriber wire and the in-wire;
2. Inner conductor materials of computer local area network, access network cables, and field cables;
3. Core wire of high temperature radio frequency cable;
4. Conductor materials for high temperature electronic wires;
5. Connectors for various electronic components; air wire for power transmission and telephone lines;
6. Catenary and air wires of electrified railways and rail transit lines;
7. Braided shielding wires of power cables; grounding rods in the power industry; connecting conductor materials for medical equipments;
Why Choose Us
Changzhou Yuzisenhan Electronics Co.,Ltd was established in 2008. We have many years of production experience. We mainly produces various specifications of CCS/TCCS, CCA/TCCA, CCAM, CCC/TCCC, stranded wire and Aluminum Foil Mylar tape etc. We are a factory with competitive prices. We have multiple certificates and product testing reports. A complete ISO9001 quality assurance system has been established to ensure that our products are strictly controlled from raw materials to finished products.
